Drawing Hgl And Egl Lines . Hgl = hydraulic grade line in ft egl = energy grade line in ft. Fluid head = the flow energy + the potential energy.

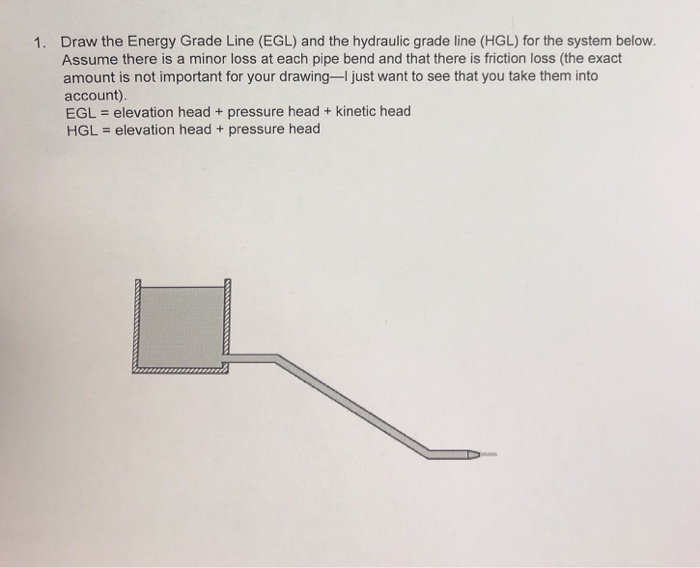

Solved Draw The EGL And HGL For The System Below. Include... from www.chegg.com
Hgl = hydraulic grade line (m fluid column) the hydraulic grade line lies one velocity head below the the energy line. The energy grade line (egl) and the hydraulic grade line (hgl) are defined as z g p v egl = h = + + 2 2 0 g (1) z p hgl = + g (2) egl shows the height of the total bernoulli constant while hgl is the height to which liquid would rise in a piezometric tube attached to the pipe (see figure 1). Hydraulic grade line graphical representations of total energy and potential energy side note from lab :
Solved Draw The EGL And HGL For The System Below. Include...
To display these properties, create a new pipe style with these options turned on and save the pipe style for future use. Hgl (dashed black line) and egl. • from tip 4, sketch the hgl below the egl by a distance of v^{2} / 2 g \approx 1.6 ft. Show a small head loss.
Source: www.chegg.com
Check Details
A change in pipe diameter leads to a change in v ( v 2 /2g ) due to continuity and thus a change in distance between hgl and egl 4. Hv = velocity head (m or ft) the relationships between the hydraulic and energy grade lines are as such: G = acceleration due to gravity. Draw the hydraulic and energy.
Source: www.chegg.com
Check Details
The velocity heads, at the pipe 1, pipe 4, and point i,. List any missing data, i.e., flow in each pipe and flow direction. Click to see full answer Hydraulic grade line graphical representations of total energy and potential energy side note from lab : • pressure head + elevation head +z p γ • measured by piezometers energy line:
Source: www.chegg.com
Check Details
Difference between el and hgl = g. An energy grade line ( egl ) shows the variation of the total head. Want to see more mechanical engineering instructional videos? The elevation heads (from the reference point of your choice at the pipe 2 and 4; Hgl = hydraulic grade line in ft egl = energy grade line in ft.
Source: www.chegg.com
Check Details
At point 0, hgl = egl inside the tank, since the fluid is at rest (v = 0). Show a small head loss. If the pipe is not under pressure, the hydraulic grade line is simply the gravitational head. To get full credit make sure to annotate: Hgl (dashed black line) and egl.
Source: www.chegg.com
Check Details
• pressure head + elevation head +z p γ • measured by piezometers energy line: Hgl (dashed black line) and egl. Neither egl or hgl can rise above this value unless work is added to the flow (e.g., with a pump). Want to see more mechanical engineering instructional videos? Pressure head + elevation head + velocity head, ++ g v.
Source: www-mdp.eng.cam.ac.uk
Check Details
1 3.0 0.192 5 2.5 0.179 3 10 2.0 0.155 4 15 1.5 0.080 20 2.0 0.150 6. To display these properties, create a new pipe style with these options turned on and save the pipe style for future use. Hydraulic grade line analysis anchor: 11.12.2 tailwater for most design applications, the tailwater will either be above the crown of.
Source: www.chegg.com
Check Details
Difference between el and hgl = g. Egl = hgl + v 2 /2g, egl = hgl for v=0 2. As long as you have the layers in the pipe style to show on the profile view, the hgl & egl should show up as soon as the file is imported. Hgl = hydraulic grade line (m fluid column) the.
Source: www.slideserve.com
Check Details
• from tip 5, check the sketches to ensure that egl and hgl are decreasing in the direction of flow (except at the pump). Any work extraction along the path as with a. Hgl is determined by subtracting the velocity head (v2/2g) from the energy gradient (or energy grade line). • pressure head + elevation head +z p γ •.
Source: www.chegg.com
Check Details
G = acceleration due to gravity. (circle correct answer.) tank 1 tank 2 b v pretend the dashed line goes through center of demand node residential area with average daily demand of Hydraulic grade line analysis anchor: As long as you have the layers in the pipe style to show on the profile view, the hgl & egl should show.
Source: www.chegg.com
Check Details
Difference between el and hgl = g. Click to see full answer Fluid head = the flow energy + the potential energy. The energy grade line (egl) and the hydraulic grade line (hgl) are defined as z g p v egl = h = + + 2 2 0 g (1) z p hgl = + g (2) egl shows.
Source: www.chegg.com
Check Details
Fluid head = the flow energy + the potential energy. Also, if you want to display the hgl/egl information in labels (in addition to the profile view), create a new pipe label and/or. H = elevation in ft v = velocity in ft/sec. Hgl (dashed black line) and egl. Draw the hydraulic and energy grade lines (hgl and egl for.
Source: www.chegg.com
Check Details
To display these properties, create a new pipe style with these options turned on and save the pipe style for future use. The pressure heads, at the pipe 1 and point d; The velocity heads, at the pipe 1, pipe 4, and point i,. H = elevation in ft v = velocity in ft/sec. Egl = v²/2g + p/ y.
Source: www.chegg.com
Check Details
Egl elevation = hgl + hv. • pressure head + elevation head +z p γ • measured by piezometers energy line: If the pipe is flowing full, the hydraulic grade line will always be below the energy grade line. If p=0 , then hgl=z 3. Figure 1 illustrates the energy and hydraulic grade lines for open channel and pressure flow.
Source: www.chegg.com
Check Details
Losses in rapid pipe expansion δh total = h minor + h major + h bernoulli Show a small head loss. Also, sketch egl from the reservoir on the left to the pump inlet. The equations for the hydraulic grade line and energy grade line (egl) are: Neither egl or hgl can rise above this value unless work is added.
Source: www.researchgate.net
Check Details
The hydraulic grade line is a plot of the sum of two of the terms of the bernoulli theorem: As illustrated in figure 1, if the hgl is above the inside top (crown) of the pipe, pressure flow conditions exist. Neither egl or hgl can rise above this value unless work is added to the flow (e.g., with a pump)..
Source: www.chegg.com
Check Details
Solution for draw hydraulic grade line (hgl) and energy grade line (egl) and discuss. Hgl = hydraulic grade line in ft egl = energy grade line in ft. The pressure heads, at the pipe 1 and point d; If the pipe is not under pressure, the hydraulic grade line is simply the gravitational head. Draw the hydraulic and energy grade.
Source: www.chegg.com
Check Details
Sketch of a culvert outlet which depicts the difference between the hgl and the energy grade line (egl). Hgl = hydraulic grade line in ft egl = energy grade line in ft. Difference between el and hgl = g. If the pipe is flowing full, the hydraulic grade line will always be below the energy grade line. • from tip.
Source: www.youtube.com
Check Details
Analyze the system’s hydraulic grade line (sometimes referred to as the hgl) to determine if you can accommodate design flows in the drainage system without causing flooding at some location or causing flows to exit the system at locations where this is unacceptable. As long as you have the layers in the pipe style to show on the profile view,.
Source: www.slideserve.com
Check Details
Hgl = p / γ + h (4) where. At point 0, hgl = egl inside the tank, since the fluid is at rest (v = 0). If p=0 , then hgl=z 3. An energy grade line ( egl ) shows the variation of the total head. • from tip 4, sketch the hgl below the egl by a distance.
Source: physicshelpforum.com
Check Details
Also, if you want to display the hgl/egl information in labels (in addition to the profile view), create a new pipe label and/or. List any missing data, i.e., flow in each pipe and flow direction. In the autocad civil 3d pipe style, the hydraulic grade line and energy grade line are turned off (display set to off) by default. Hydraulic.
